基于GridLayout封装的自定义依赖库控件ScheduleView
Git地址

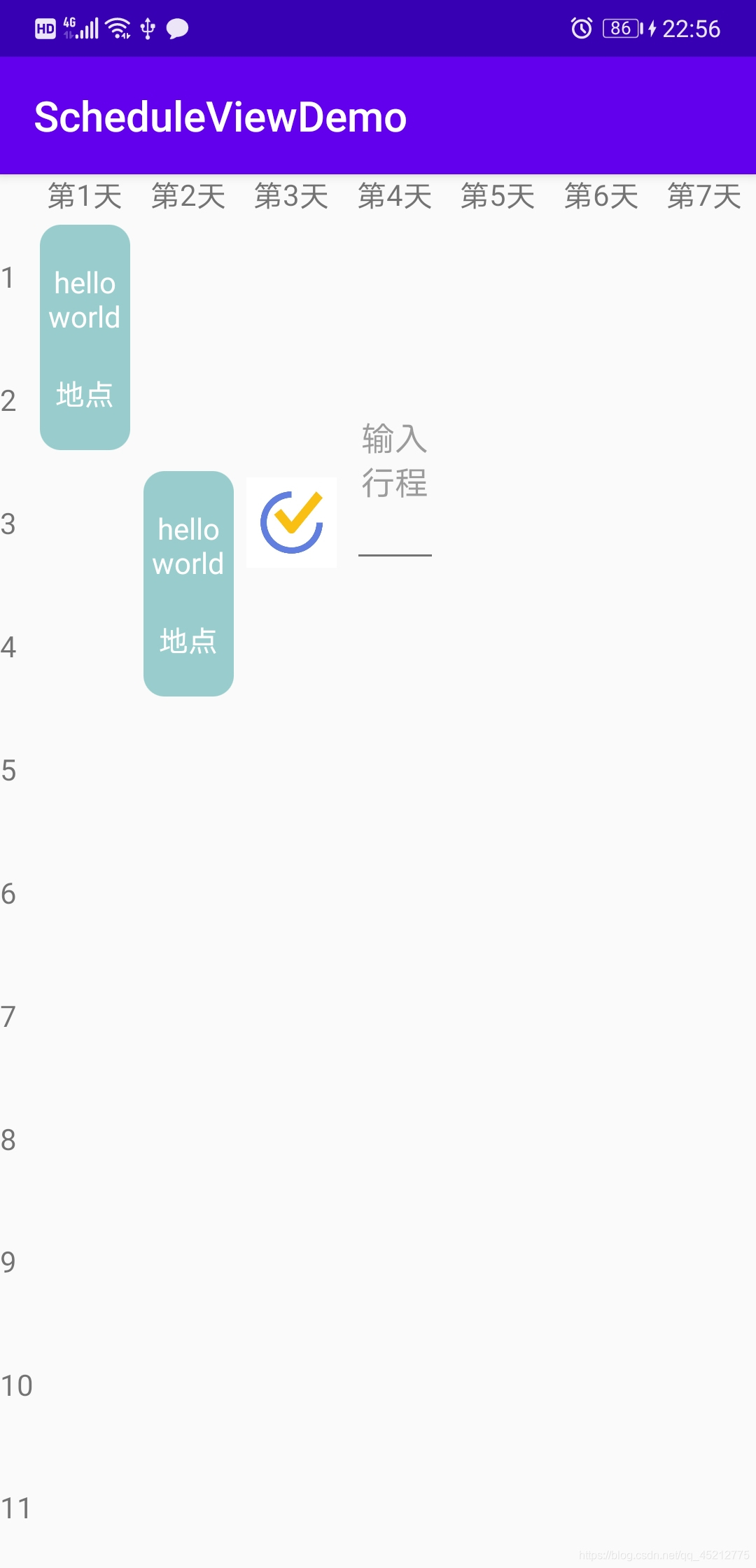

效果图
简单实现日程表,同时实现多种不同的子布局,支持自定义layout

添加依赖库
Add it in your root build.gradle at the end of repositories:
1 2 3 4 5 6
| allprojects { repositories { ... maven { url 'https://jitpack.io' } } }
|
Add the dependency:
1 2 3
| dependencies { implementation 'com.github.kirito0206:ScheduleView:1.0.2' }
|
使用方式
在XML文件中添加
1 2 3 4 5 6
| <com.example.scheduleview.ScheduleView android:id="@+id/sv_main" android:layout_width="match_parent" android:layout_height="match_parent" android:rowCount="12" android:columnCount="8"/>
|
设置适配器类
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
|
class SVAdapter(val context : Context,val list: ArrayList<T>) : ScheduleAdapter() {
override fun getItemCount(): Int { return list.size }
override fun getDay(position: Int): Int { return list[position].day }
override fun getBoundary(position: Int): Pair<Int, Int> { return Pair(list[position].timeX, list[position].timeY) }
override fun getView(position: Int): View { val textView = TextView(context) textView.text = position.toString() textView.gravity = Gravity.CENTER return textView val inflater = LayoutInflater.from(context) var view = inflater.inflate(R.layout.item_schedule, null) view.foregroundGravity = Gravity.CENTER return view }
override fun getXTitle(dayIndex: Int): String { return "XTitle" }
override fun getYTitle(timeIndex: Int): String { return "YTitle" }
}
|
然后在代码中初始化view即可
1 2 3 4 5
| var adapter = SVAdapter(this,list) sv_main.adapter = adapter sv_main.post { sv_main.show() }
|
项目局部实现方式
封装适配器基类,方便获取数据
1 2 3 4 5 6 7 8 9 10 11 12 13 14
| abstract class ScheduleAdapter {
abstract fun getItemCount() : Int
abstract fun getDay(position: Int) : Int
abstract fun getBoundary(position : Int) : Pair<Int,Int>
abstract fun getView(position: Int) : View
abstract fun getXTitle(position: Int) : String
abstract fun getYTitle(position: Int) : String }
|
Gridlayout动态添加自定义的布局(困扰了很久
因为xml中的wrap_content和match_parent无效
所以采用view调用post的方法(所有view绘制结束后进行,就可以获取到宽高),再进行添加子布局
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
| for (i in 0 until adapter!!.getItemCount()){ var t = adapter!!.getBoundary(i) val rowSpec: Spec = spec(t.first, t.second - t.first +1) val columnSpec = spec(adapter!!.getDay(i), 1) val params = LayoutParams(rowSpec, columnSpec) params.width = (this.width-48)/columnCount params.height = (this.height-48)/rowCount * (t.second - t.first +1) params.setMargins(5,5,5,5) params.setGravity(Gravity.CENTER and Gravity.FILL) this.addView(adapter!!.getView(i),params) }
|
